180° Lateral Rotation
Wall Mounted Jib Cranes
Maximum floor space utilization with column-mounted lifting. Robust cantilever designs providing 180-degree rotation for workstation material handling.
Up to 5 Ton SWL
180° Rotation
Zero Floor Space
Compact &
Efficient
Efficient
Space Optimization
Maximize Space with Column-Mounted Lifting

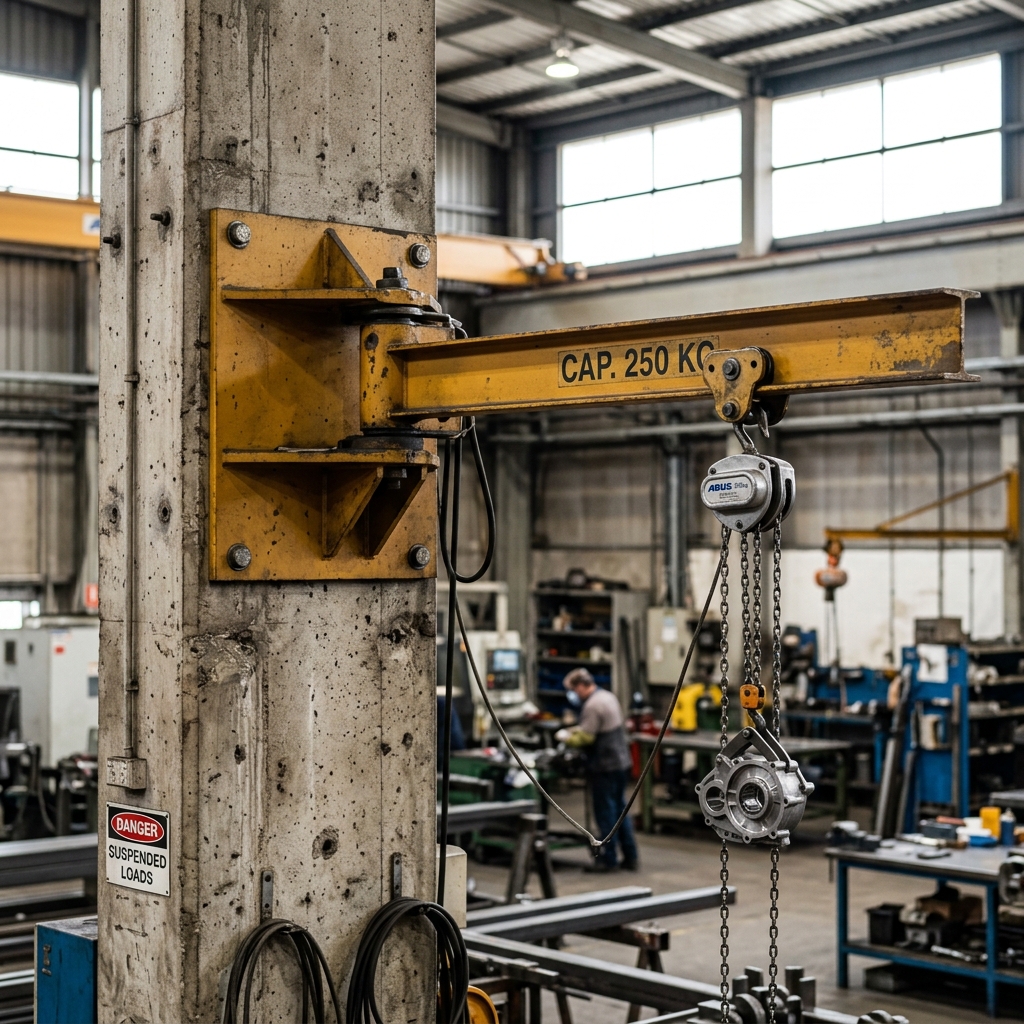

As a leading wall mounted jib crane manufacturer, we specialize in cantilever lifting systems that mount directly to your building's existing RCC or steel columns. This design requires zero floor space, making it ideal for crowded production floors.
Our wall jibs are engineered with high-precision pivot bearings to ensure effortless manual or motorized rotation. Perfect for servicing individual workstations or as an auxiliary lifting unit under a larger overhead crane.
- Heavy-duty structural cantilever arm
- Robust wall-mounting brackets
- 180° horizontal rotation
- High-quality electric hoists
- Precision slewing mechanism
- Minimal maintenance design
Standards:
IS:807 · IS:3177 · IS:3938 (hoist)
Capacity
0.25T to 5 Tons
Rotation
Up to 180 Degree
Arm Length
Up to 7 Metres
Standard
IS:807 / IS:3177
Sector Integration
Localized Sector Deployment
Packaging Lines
Efficient material handling in dense packaging environments
Assembly Benches
Dedicated workspace lifting without using floor space
Foundries
Handling molds and components at individual stations
How We Deliver
Design to Commissioning
Column Audit
Structural verification of building RCC/Steel columns
Cantilever Design
Arm clearance & slewing range optimization
Bracket Mounting
Custom fabrication of high-tensile wall brackets
Slew Testing
Bearing articulation & manual/motorized travel check
Commissioning
On-site bracket installation, alignment & SWL trials
Our Advantage
Why Choose Crane Fabricators?
Zero Floor Space Usage
Mounts directly to existing building columns, leaving your entire floor area free for machinery, traffic, and production.
Over-the-Machine Reach
Engineered to provide localized lifting directly over workstations and machine tools without any floor-level obstructions.
270-Degree Articulation
Precision-engineered slewing bearings allow for wide-angle rotation, providing extensive coverage for parallel fabrication bays.
Easy Structure Retrofit
Can be easily installed on existing columns after a structural audit, making it a cost-effective upgrade for any facility.
Lightweight Strength
Utilizes specialized I-beam designs that offer high lifting capacities (up to 5T) with minimal dead weight on the column.
Rapid Installation
Compact design and pre-fabricated mounting brackets ensure a quick installation process with zero disruption to daily operations.
Localized Lifting
Wall Jib FAQ
The building column must be structurally capable of handling the moment load and shear forces exerted by the jib arm. We provide detailed load calculations for your structural consultant to verify.
Standard Wall Mounted Jib Cranes provide up to 180-degree rotation, allowing the arm to cover a semi-circular area around the mounting column.
As specialized jib crane manufacturers, we build Wall-Mounted units from 250 Kg to 5 Tons, tailored to your specific workstation requirements and arm length.
While possible, it's generally not recommended. A dedicated electric hoist for each jib crane ensures maximum production uptime and eliminates the effort of moving heavy hoist units between arms.
We install mechanical end stops on the mounting bracket and electrical limit switches (if motorized) to ensure the cantilever arm only operates within its safe rotation zone.
